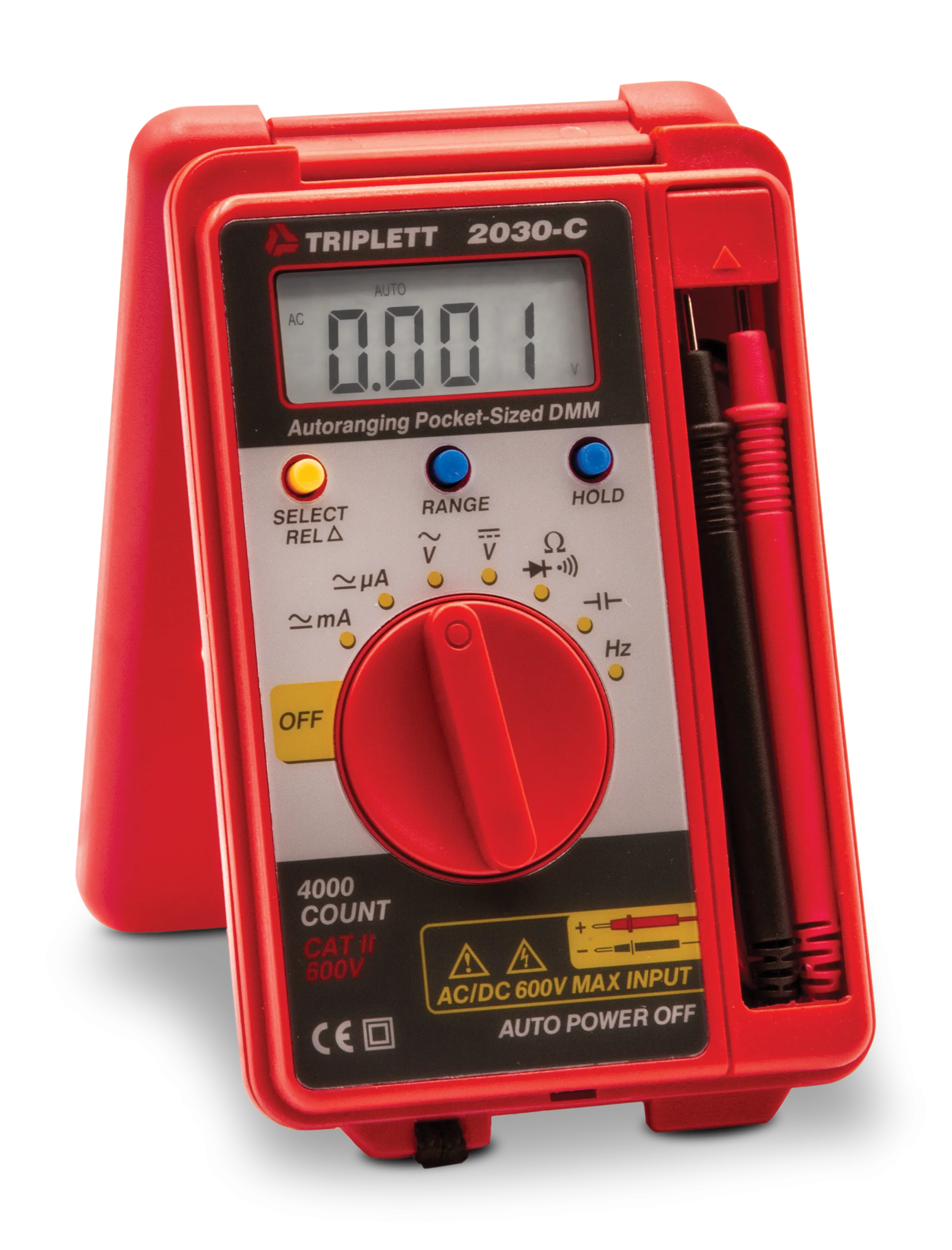

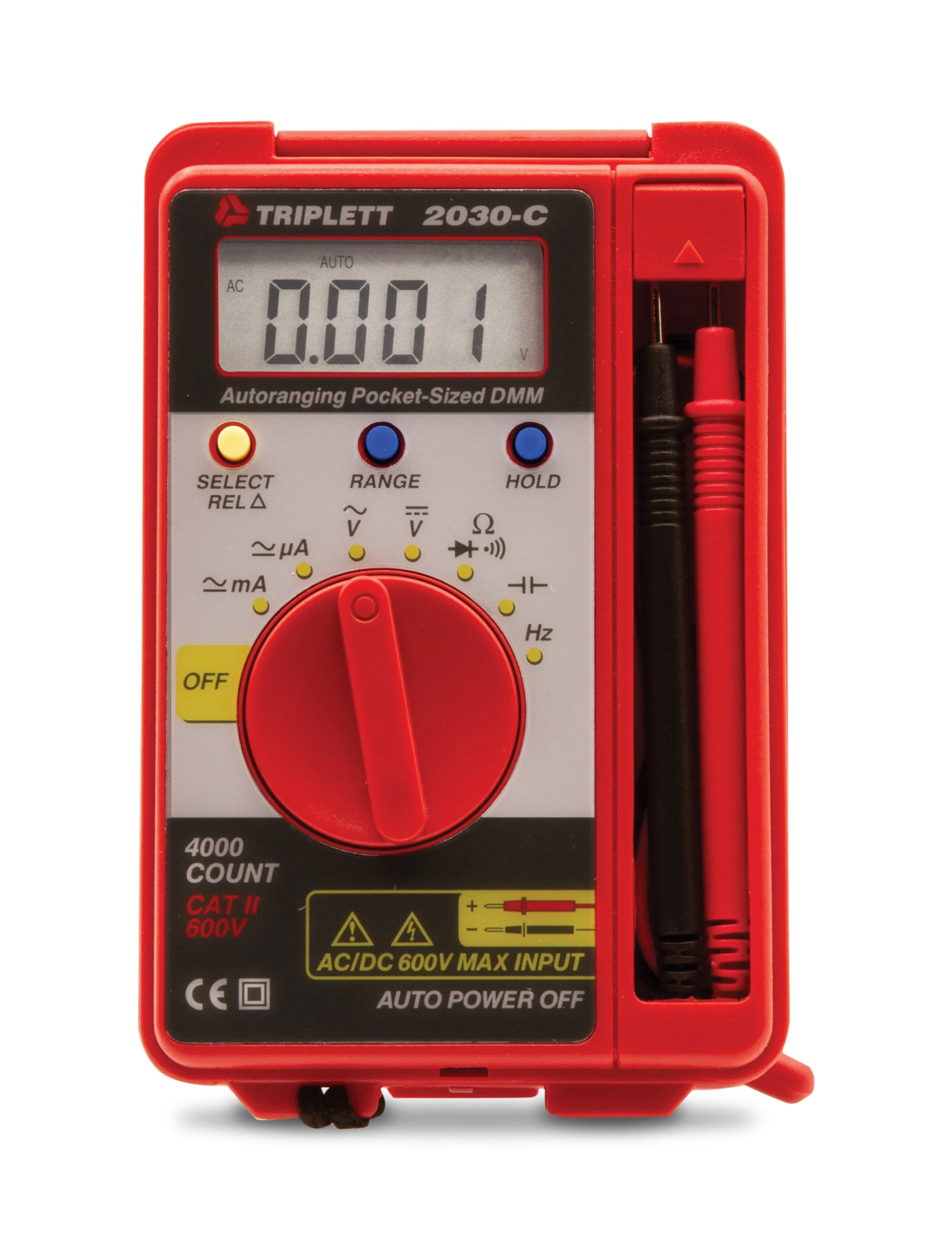

The Triplett Model 2030-C is a 3-3/4 digit (4000 count) pocket sized digital multimeter with a built-in hard case. It offers a variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, Frequency, and Capacitance.
DESCRIPTION

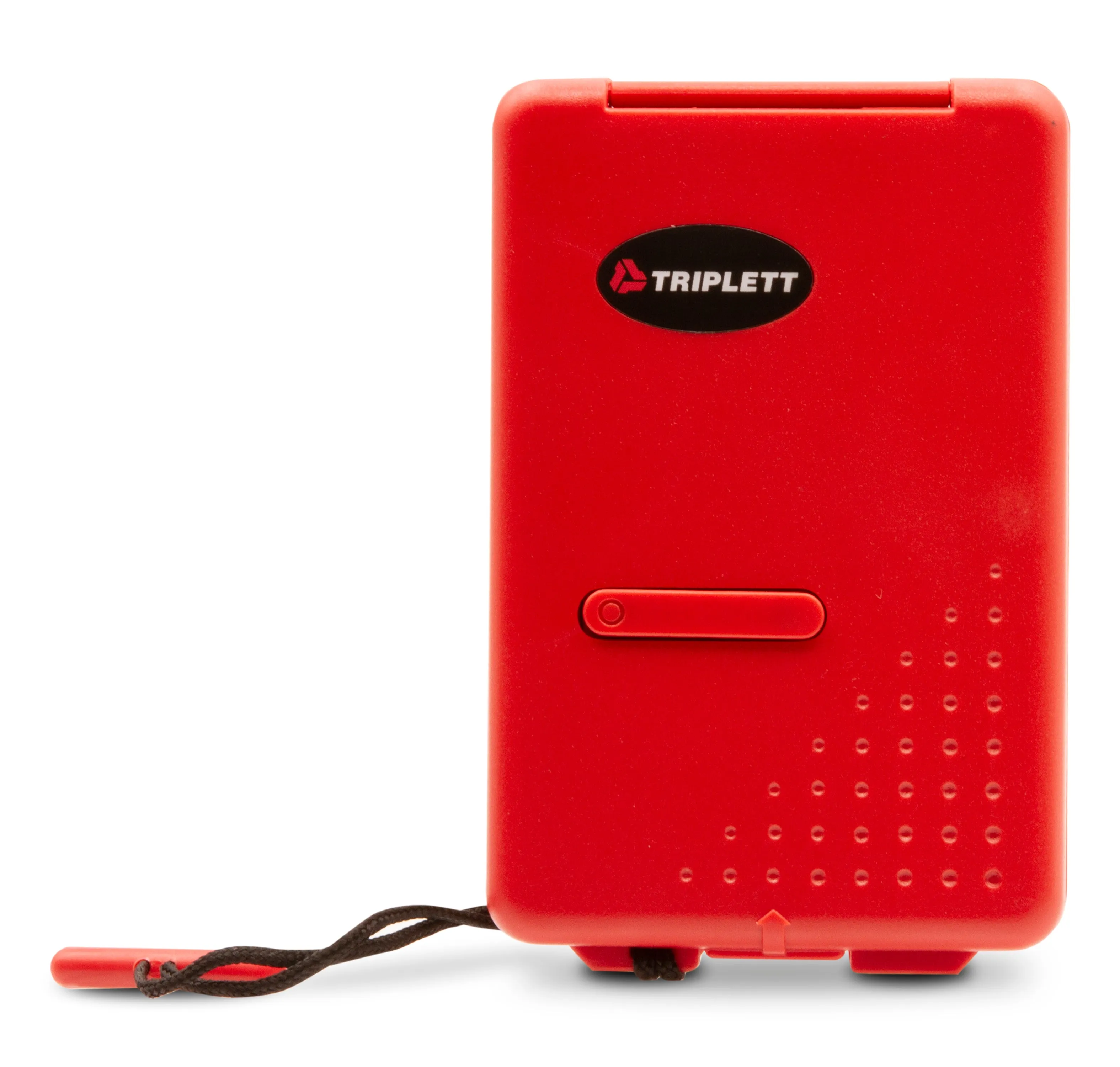

The Triplett Model 2030-C is a 3-3/4 digit (4000 count) pocket sized digital multimeter with a built-in hard case. It offers a variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, Frequency, and Capacitance. The ABS plastic housing provides impact and drop resistance in an ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. Includes integrated test leads and (2) LR44 batteries.
CATEGORY:
Features
- 37 ranges including AC/DC Voltage to 600V and AC/DC Current to 400mA
- Frequency and Capacitance measurement with diode and continuity tests
- 3-3/4 Digit, 4000 count display
- Includes integrated test leads and (2) LR44 batteries with 3 year warranty
Product Overview
Specifications
| Specifications | Range |
| Auto/Manual Ranging | Autoranging |
|
True RMS/Averaging |
Averaging |
| Basic Accuracy | ±0.8% |
| AC Voltage | 0.1mV to 600V |
| DC Voltage | 0.1mV to 600V |
| AC Current | 0.1µA to 400mA |
| DC Current | 0.1µA to 400mA |
| Resistance | 0.1Ω to 40MΩ |
| Capacitance | 0.01nF to 100µF |
| Frequency | 0.01Hz to 5kHz |
| Duty Cycle | 0.1 to 99.9% |
| Safety Category | CAT II-600V |
| Dimensions | 3.2 x 4.8 x 0.8" (81.2 x 122 x 20.3mm) |
| Weight | 4 oz. (113.4g) |
Includes
- Model 2030-C Multimeter
- Integrated test leads
- (2) LR44 batteries
Downloads
FAQs
-
Q. What does CAT II 600V rating mean for a multimeter?
A. The CAT II 600V rating for a multimeter refers to its safety category and maximum voltage capability. It indicates that the multimeter is designed to safely measure electrical circuits and devices in Category II environments up to 600 volts (V).
-
Q. Can I use a pocket digital multimeter for both professional and DIY electrical tasks?
A. Yes, pocket digital multimeters are versatile tools suitable for both professional technicians and DIY enthusiasts, offering convenience and reliability for various electrical tasks.
-
Q. Does the Triplett 2030-C pocket digital multimeter have auto-ranging capabilities?
A. Yes, the Triplett 2030-C pocket digital multimeter features auto-ranging, automatically selecting the appropriate measurement range for accurate readings.
-
Q. What is the maximum count of the Triplett 2030-C pocket digital multimeter?
A. The Triplett 2030-C pocket digital multimeter has a maximum count of 4000, providing a higher resolution for more precise measurements.
-
Q. Can the Triplett 2030-C pocket multimeter measure both AC and DC voltages?
A. Yes, the Triplett 2030-C pocket multimeter is capable of measuring both AC and DC voltages, making it suitable for a wide range of electrical measurements.
