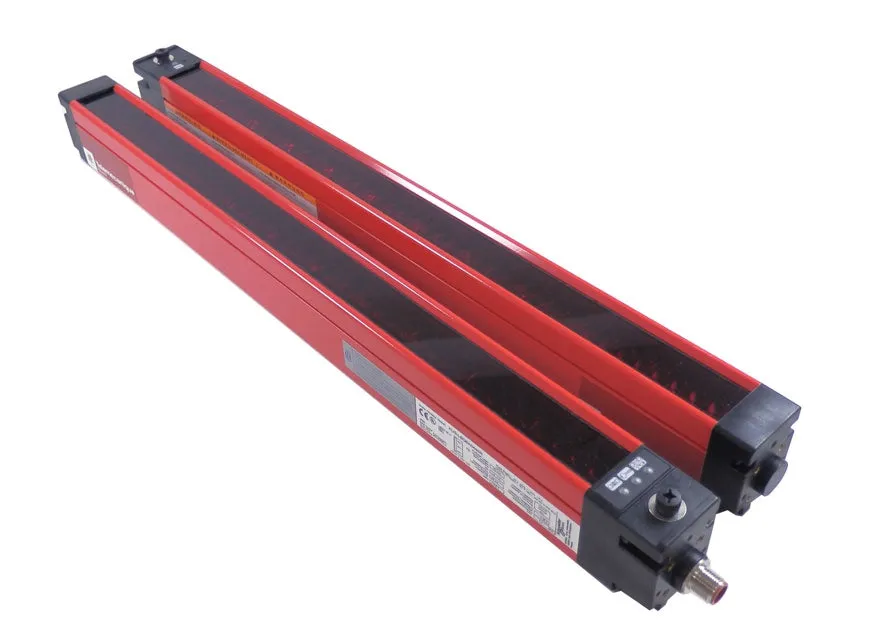

This is a Telemecanique 44 Beams 14mm Safety Light Curtain. This item has part number XUS-LBQ6A0440. This item is new and has never been used. It is sold exactly as shown and does not include any additional parts or accessories.

Specifications

• Commercial Status: Commercialised
• Range of product: Preventa Safety detection
• Series name: Basic
• Product or component type: Safety light curtain type 4
• Device short name: XUSLB
• Output type: 2 safety outputs OSSD solid-state PNP (NO) (short circuit protection), 1 auxiliary output solid-state PNP
• Product specific application: For finger protection
• Minimum object diameter for detection: 0.55 in (14 mm)
• [Sn] nominal sensing distance: 0.98...22.97 ft (0.3...7 m), 9.84 ft (3 m) with Programming and Diagnostic Module (PDM)
• Height protected: 17.32 in (440 mm)
• Number of beams: 44
• Complementary
• Detection system: Transmitter-receiver system
• Response time: 23 ms

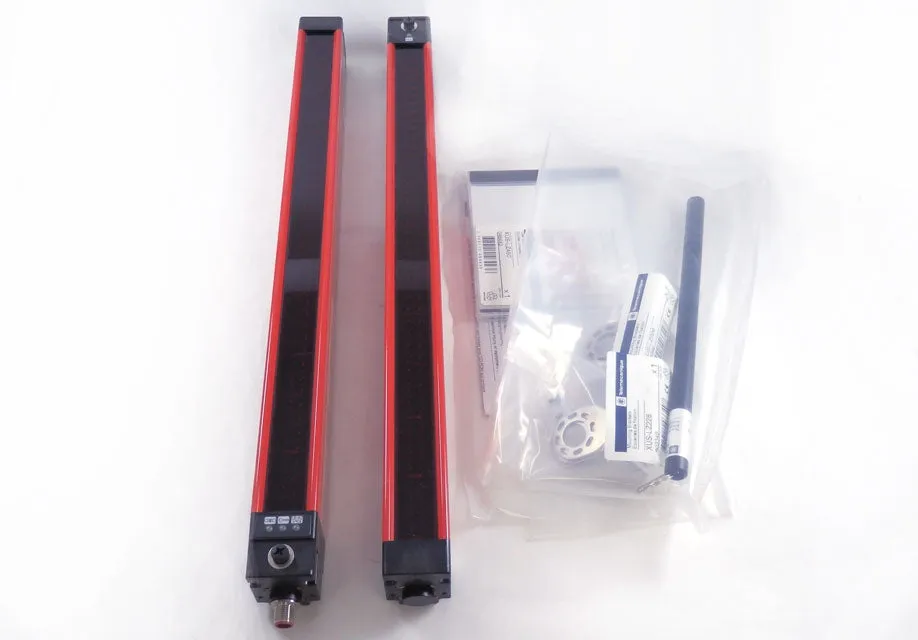

Kit composition:

• 1 arc suppressor set
• 1 user guide with certificate of conformity on CD-ROM
• 1 receiver
• 1 test rod
• 1 transmitter
• 2 sets of 2 brackets with fixings
• [EAA] effective aperture angle: 2.5 ° at 3 m
• Light source: GaAIAs LED, 880 nm
• [Us] rated supply voltage: 24 V DC ( /- 20 %)
• [Ie] rated operational current: 2 A

Current consumption:

• 1.8 A with maximum load (receiver)
• 450 mA no-load (receiver)
• 285 mA (transmitter)
• Output current limits: 625 A for safety outputs OSSD 100 mA for auxiliary output
• Output voltage: 24 V
• Output circuit type: DC
• Switching capacity in mA: 50 mA
• Local signalling: 4 LEDs (receiver), function: stop, run, interlock, ECS/B Blanking or FB (Floating Blanking)
• 1 LED (transmitter), function: power supply

Electrical connection:

• 1 female connector M12 8 pins (receiver)
• 1 female connector M12 5 pins (transmitter)
